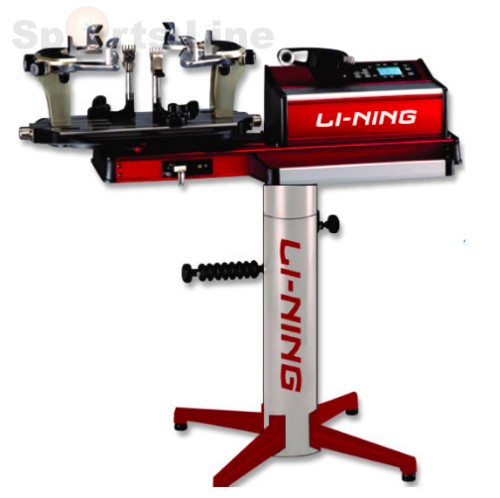

Lining EL 8800 Electronic Stringing Machine

Lining Stringing Machine EL 8800 with 6 Point Self Centering (SC) Mount System


Lining Stringing Machine EL 8800 has 6-Point Self-Centering (SC) Mount System featuring a top-side clamp down system to minimize obstructions that can snag string. Its all metal diamond coated string clamps have a unique self locking adjustment knob and smooth action cam rollers to hold strings with less clamping pressure. It also features a linear pull, diamond coated, string gripper with patented roller guide offers quick and accurate tensioning with one-hand operation
The EL 8800 is electronically controlled, its constant pull tensioning system provides precise tension control and the digital control panel putting advanced stringing functions at your fingertips

Features
NEW Digital control panel w/LCD Screen
Electronically controlled, constant pull tensioning system provides precise tension control from 11.0 to 90.0 lbs (5.0 to 40.0 kgs) in 0.1 increments
Adjustable pulling speeds from 30% to 100% in 10% increments
Adjustable Pre-stretch function adjusts from 1% to 30% over the tension setting in 1% increments
Adjustable Knot String function adjusts from 1% to 30% over the tension setting in 1% increments
9 Programmable memory settings
Linear pull string gripper offers quick and accurate tensioning with one-hand operation
6-Point Self-Centering Quick Mount System w/"V" Mounts
Universal String Clamps with diamond coating provide adequate clamping pressure for both badminton and tennis, optimized for all racquet types
Strong, light-weight aluminum extrusion construction includes base with 2 integrated drawers and a large padded tool tray ELS with 6 Point Self Centering (SC) Mount System
Power Consumption - 20 W

Power Source  - Electricity

Voltage - 250 V

Automatic Grade  - Automatic

Frequency - 60 Hz
